First Presbyterian Church of New Haven

Equipment Manuals

Last update: 19Jul22

Church

Grounds

Draft landscape plan prepared 2015

Sound system

        Component Manuals

Alarm system

       manuals

Heating Equipment - see Service Record

Reznor Gas Furnace
Serves sanctuary

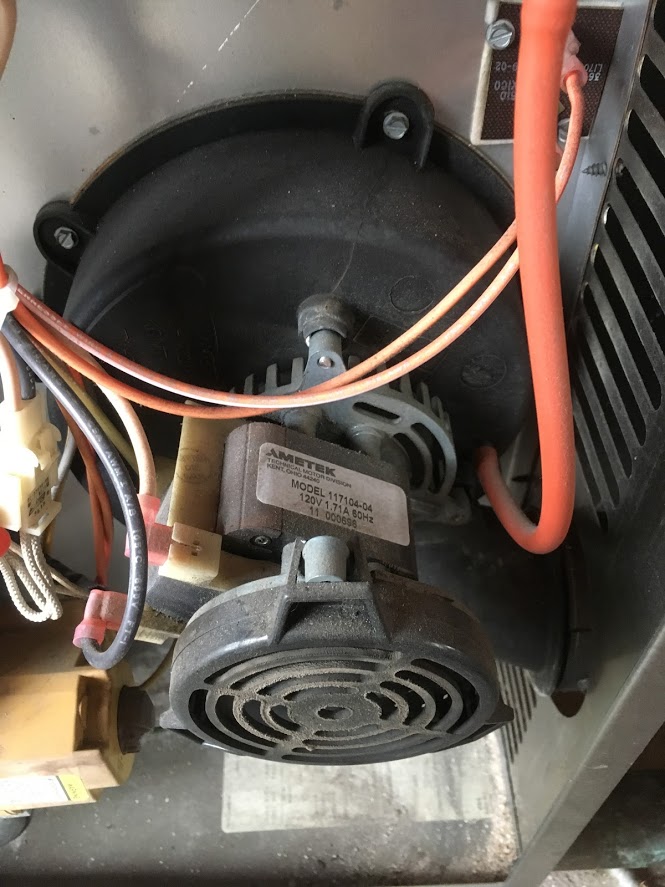

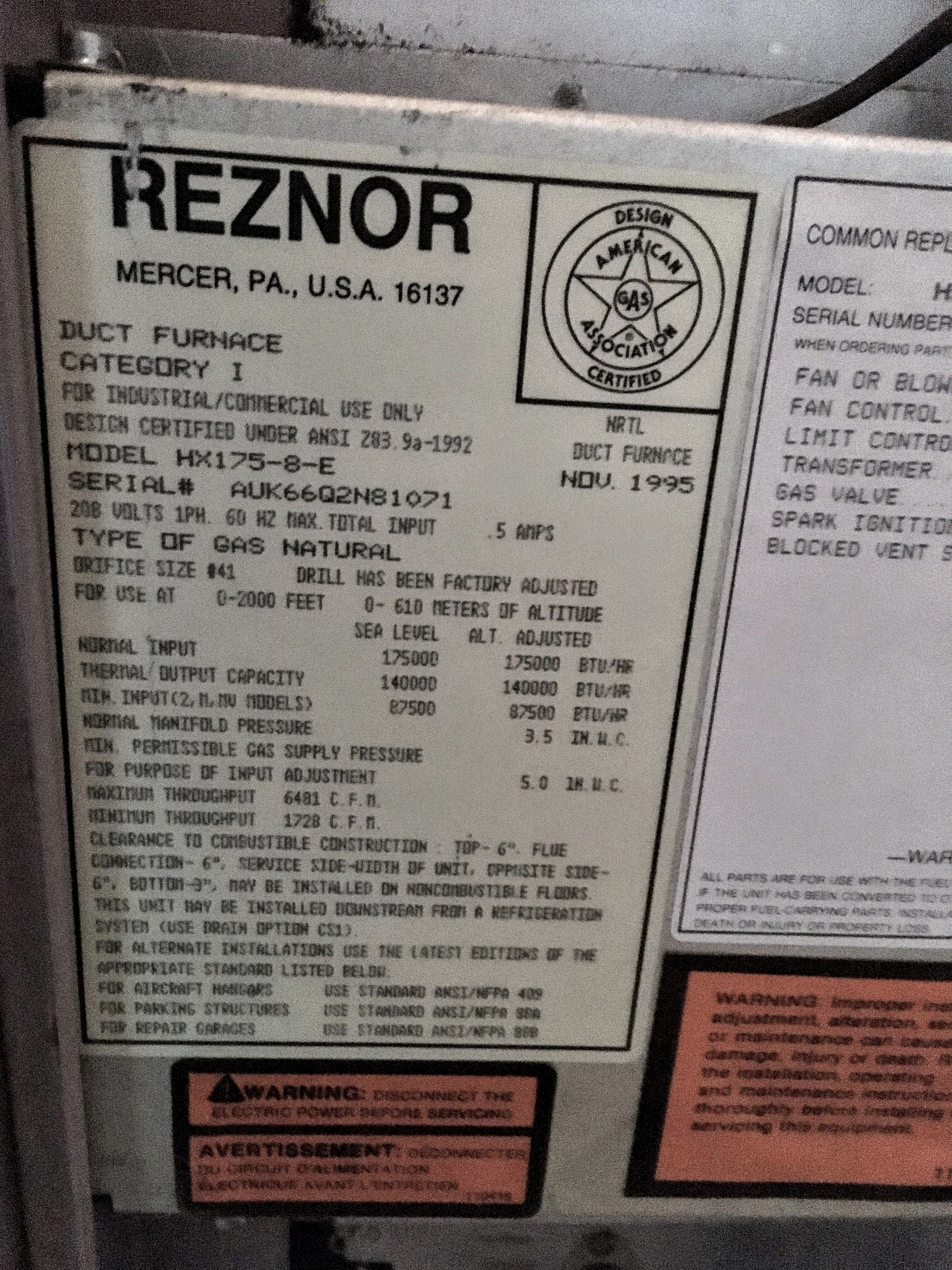

Model #: HXE175-8-E
Serial #: AUK66QZN81071
Two filters: 20*25*1

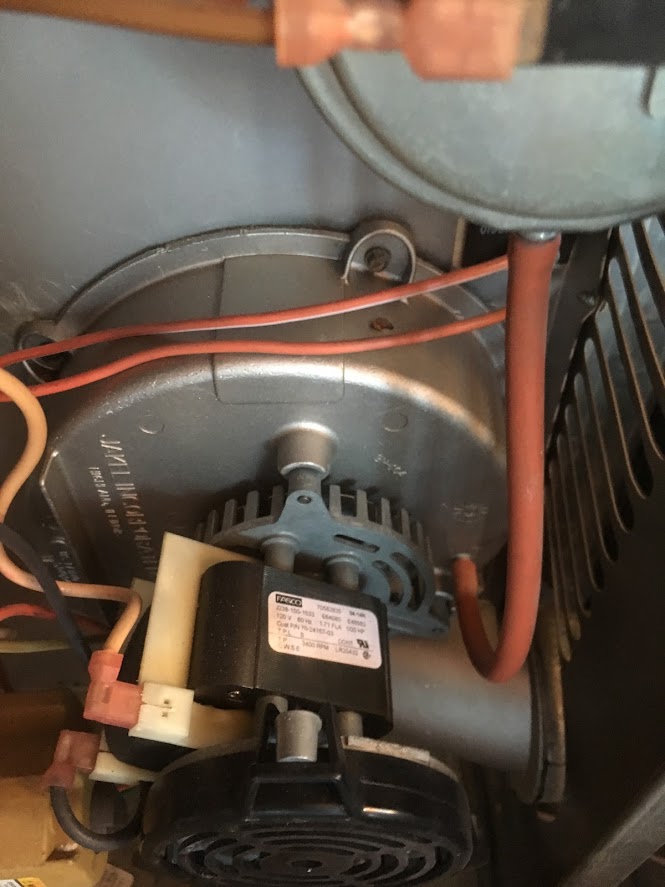

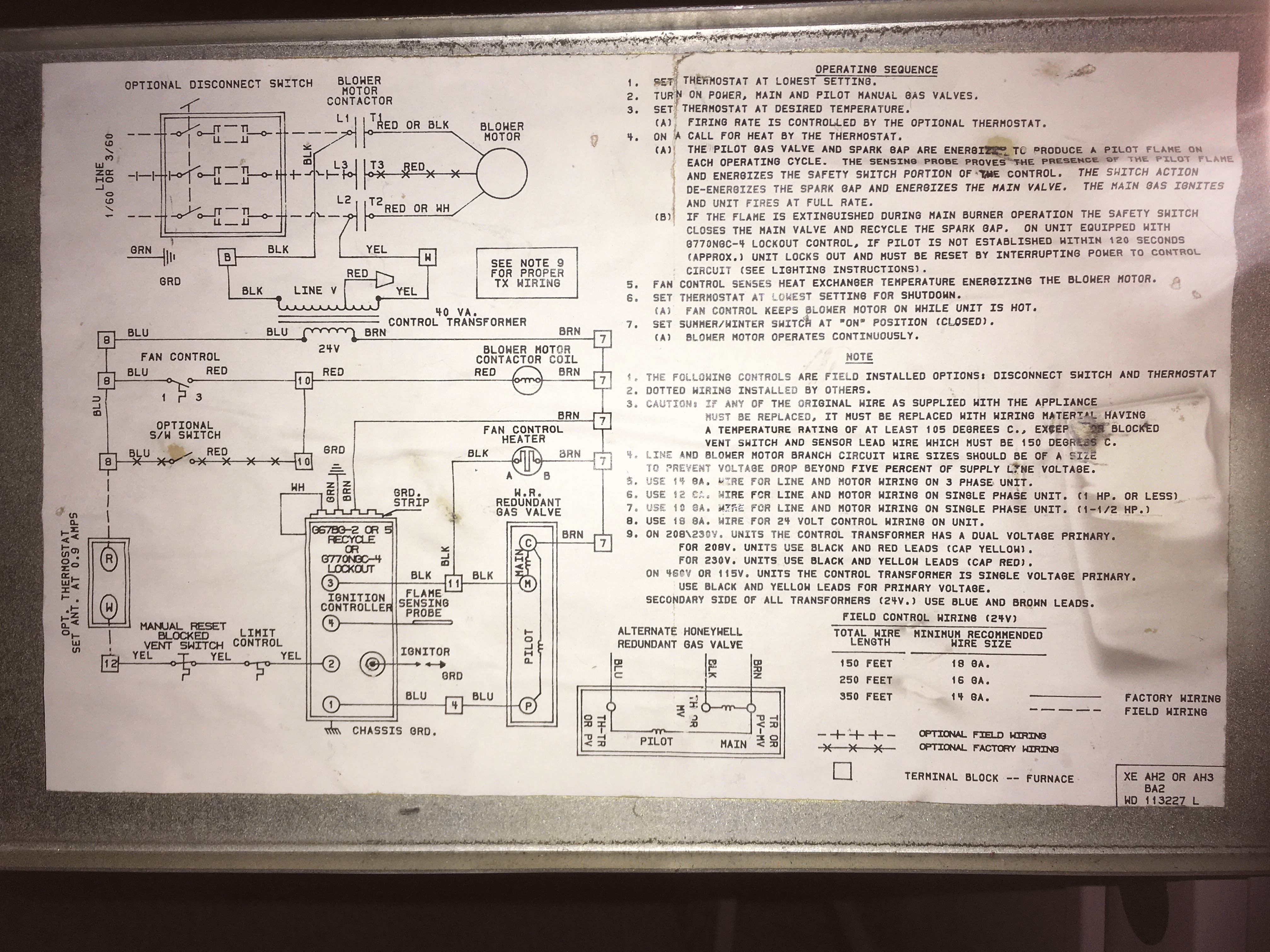

Electrical schematic
Installation manual

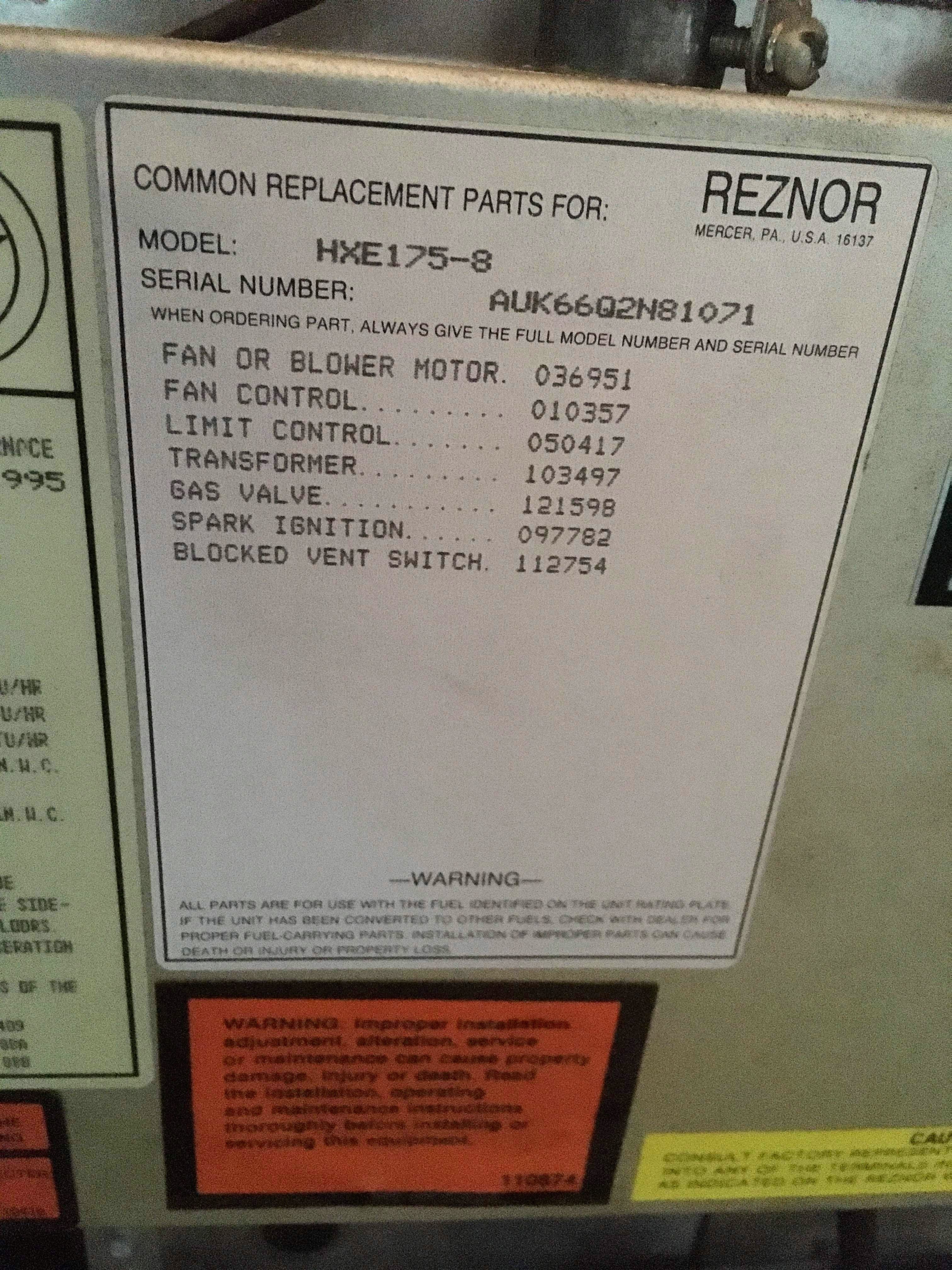

Replacement parts

Model and Serial number and product details

Installed by:

Murphy Air Conditioning Co
445 Grant St
Bridgeport CT 06610
203-579-1888
Rheem Criterion II
There are two of these units.
Cabinet measures 28 wide by 21 high.
Each use one 18*24*1 filter. (Note that this size may not be available any more. 18x25x1 will work in the clasroom unit. Need to cut filter to fit office side.) Manual
User's Manual

Installed by:

Murphy Air Conditioning Co
445 Grant St
Bridgeport CT 06610
203-579-1888
TrueZONE Damper Assembly
Honeywell HZ311 zone control

Thermostats

          Honeywell wifi programable RTH 6500 user guide (installed January 2019 - Dave Miller)
          Honeywell wifi programable RTH 6500 quick start
Lux Programmable Thermostats
Hunter 42223 Thermostats (five units) replaced 12/2010

Hot Water heater

A. O. Smith ProMax installed at time Owens building was built.
electric

Lighting

Walkway uplights timer
Motion sensing lights - exterior, near church office

Office Equipment

iMac (21.5 inch, Late 2013)
Serial Number C02LDCAKF8J2
July 2021, new 1 terrabyte Solid State Hard Drive (SSD) installed

Canon image Runner Advance DX
model C3730i
purchased January 2021
Service Contract with Ryan Business Systems

Martin Yale Model 1501 AutoFolder in one of the metal cabinets between my office and the choir room.

Mitsubishi Projector XD205U Sentry Safe (stolen??)

Owens Building

Fire Alarm System

Original system replaced  18Mar21 with Simplex 4007es

IMPORTANT NOTE: One major difference on this system is that the gathering hall annunciator panel in the corner by the windows and light switches cannot be used without the key. To that end, I left a key on top of the surface box where you can't see it but if you need it you can just reach up pull it down turn the key and that allows the touch panel to be operated.

At the main panel, there is also a password required ONLY to access the supervisory functions - not to silence an alarm. We left the simple password as "333".

Simplex 4003 Installation & Operating Manual
Simplex 4003-0001 Voice Panel Sheet
Simplex 4010 Alarm Situation Operating Instructions
Simplex 4010 Installation & Operating Manual

Heating Equipment - see Service Record

Two 15 ton units serve the Miller Gathering Room
Each unit uses:
     four 20x25x2 and
     two 20x20x2 filters
     one 5VX710 belt

Manual
Literature
CO2 Sensor Install
CO2 Sensor Data
CO2 Sensor Manual

Note: RTU 1 & 2 are linked to the smoke detection system to shut down in case of fire.

Tag RTU-1
Model # YFH180B3LOHB

Tag RTU-2
Model # YCH180B3LOHB

Two 3 ton units serve the two classroom sides
Each unit uses two 20x25x1 filters

Manual
Literature
Tag RTU-3
Model #: YSC036A3RLA1BA

Tag RTU-4
Model #: YSC036A3RLA1BA

Thermostats

2 serve Miller Gathering Room
2 serve the side classrooms
Honeywell Manual (2021 installation)
Baysens Manual (original installation)

Kitchen

Bosch Dishwasher (2X)
Magic Chef Microwave
Samsung Refridgerator
Viking Stove Cleaning Tips
Viking Stove Use

Lighting

Time Clock for four Miller rm uplights +
Emergency lighting

Manse

Goodman 2 stage furnace

Model GMH95115
95% rated AFUE
Serves first floor and part of second
Installed 15 Mar 2010
Ten year heat exchanger warranty

A O Smith ProMax water heater

Model GCVL 40 200
Serial 1008A023184
Installed 15 Mar 2010

Serves 2nd (and third?) floor


Bradford White water heater

Model MI5036FBN
Serial FA11504418
Installed 25 Feb 2009

Serves 1st floor
